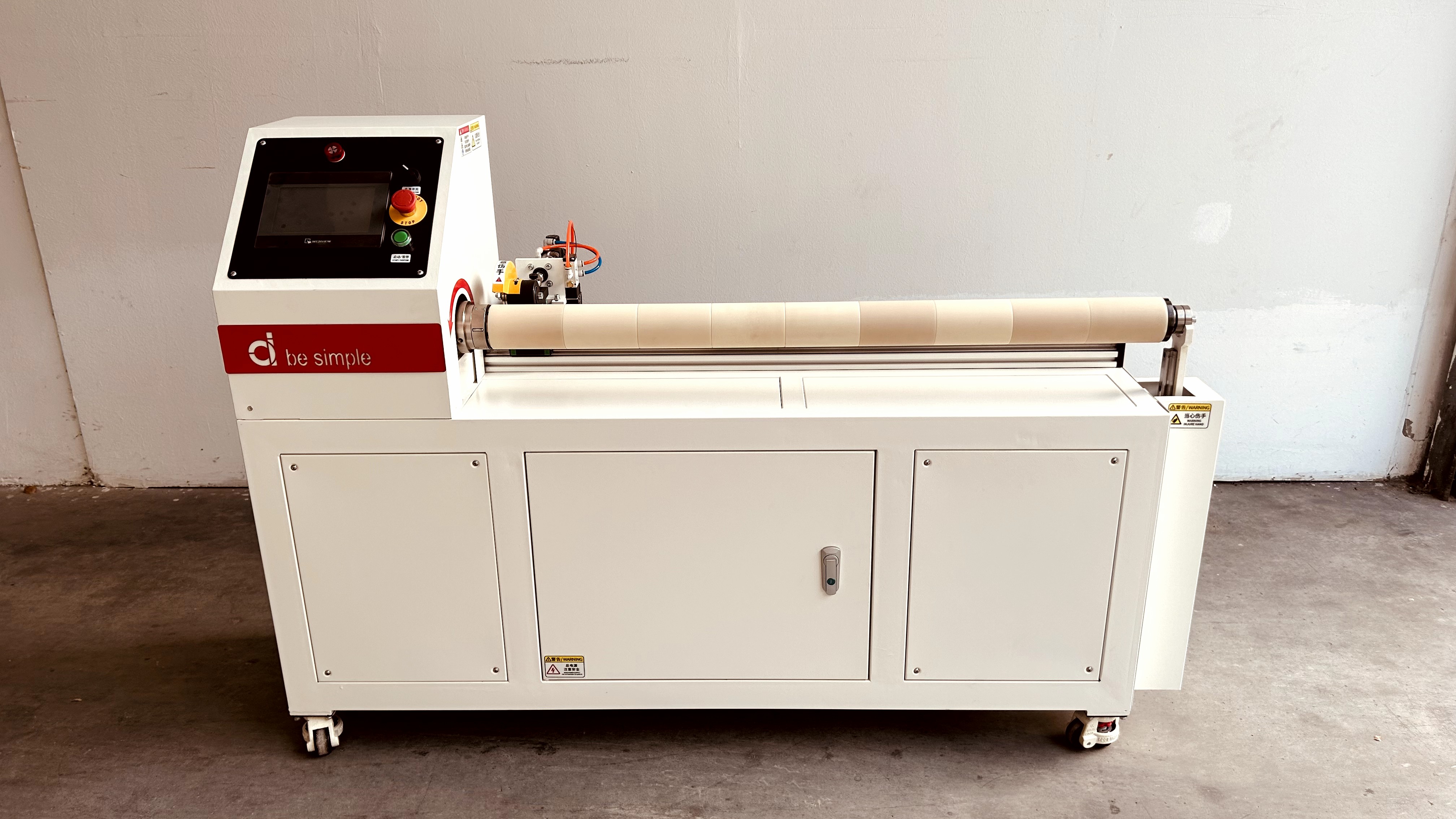

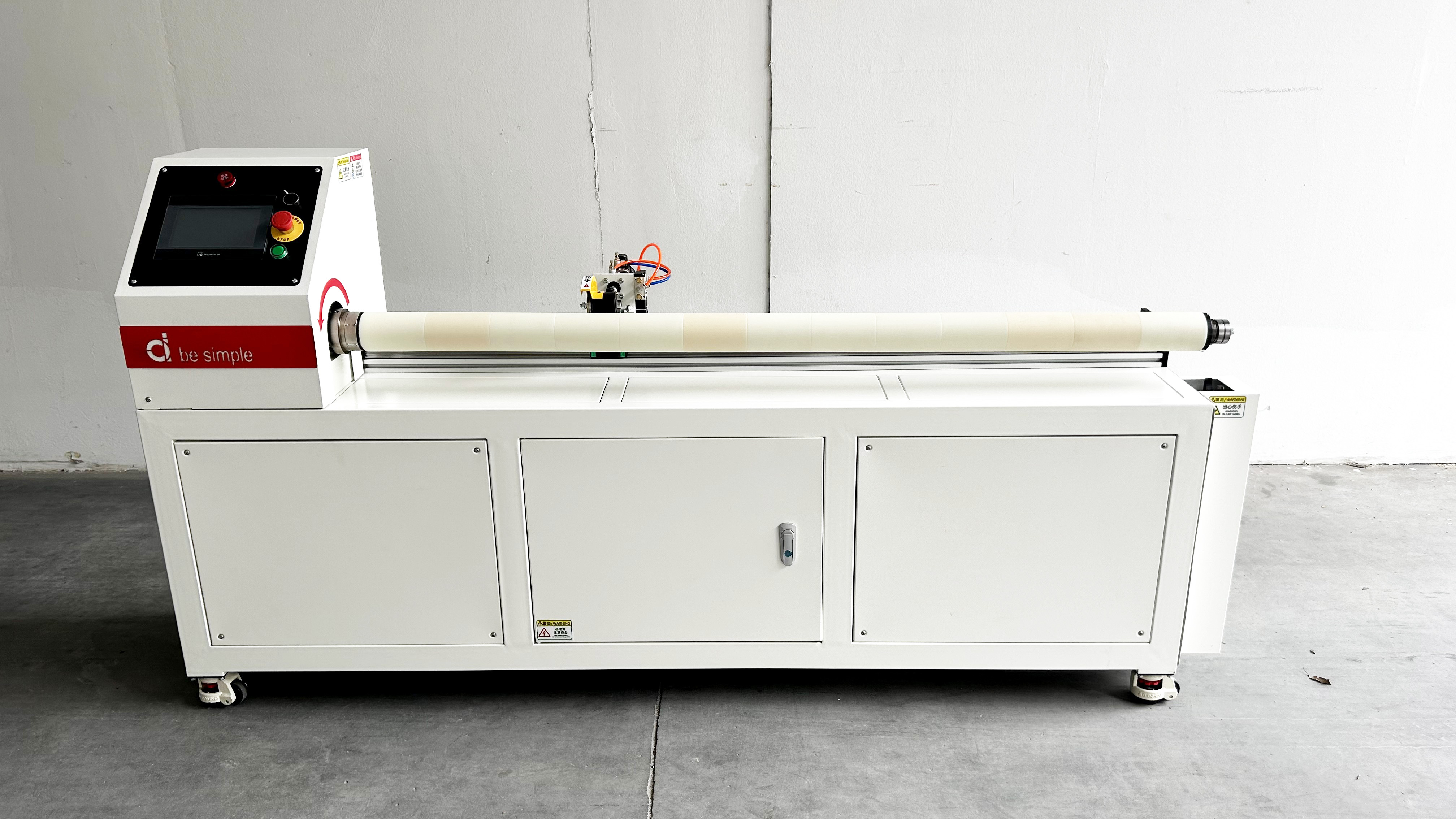

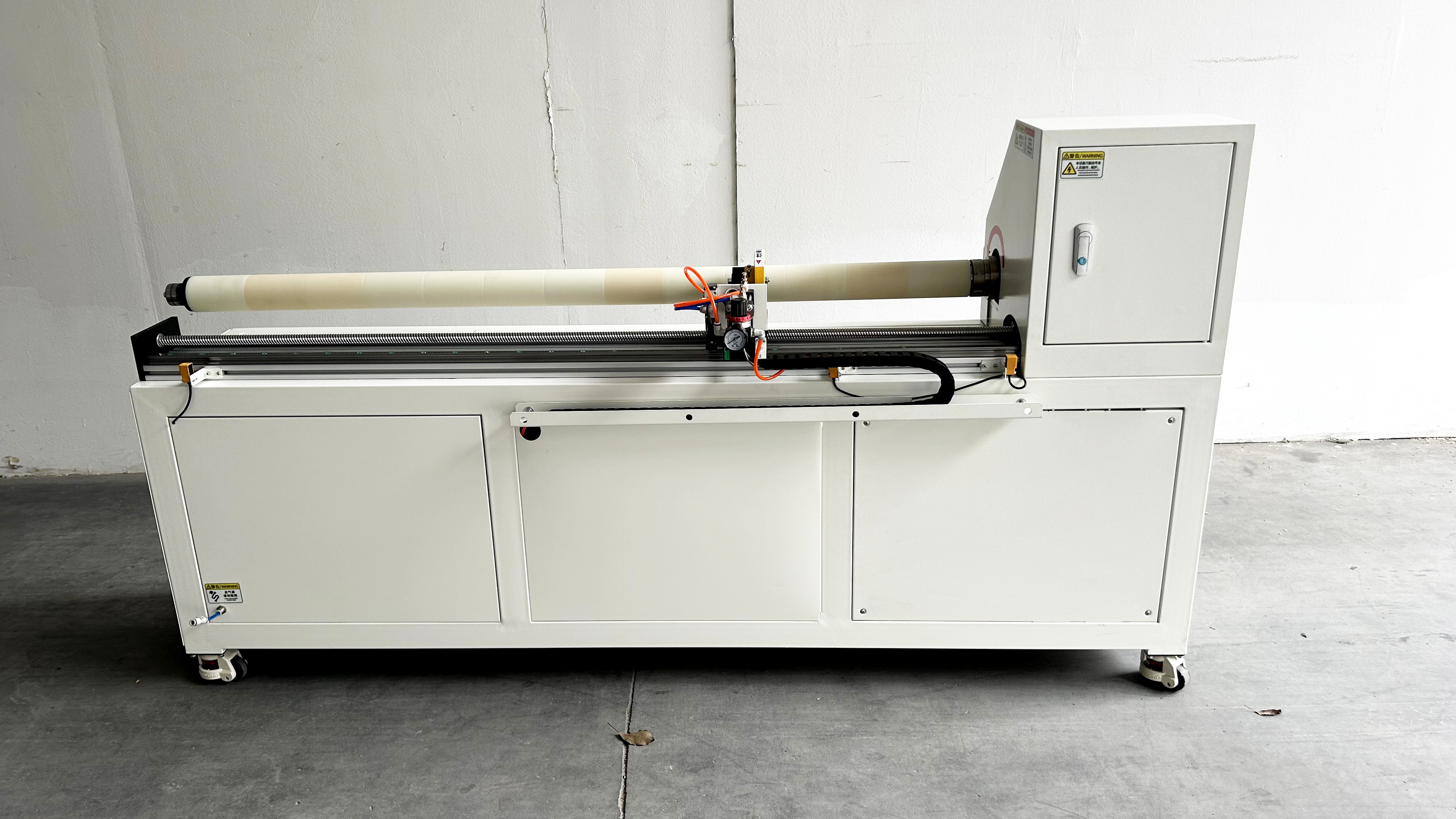

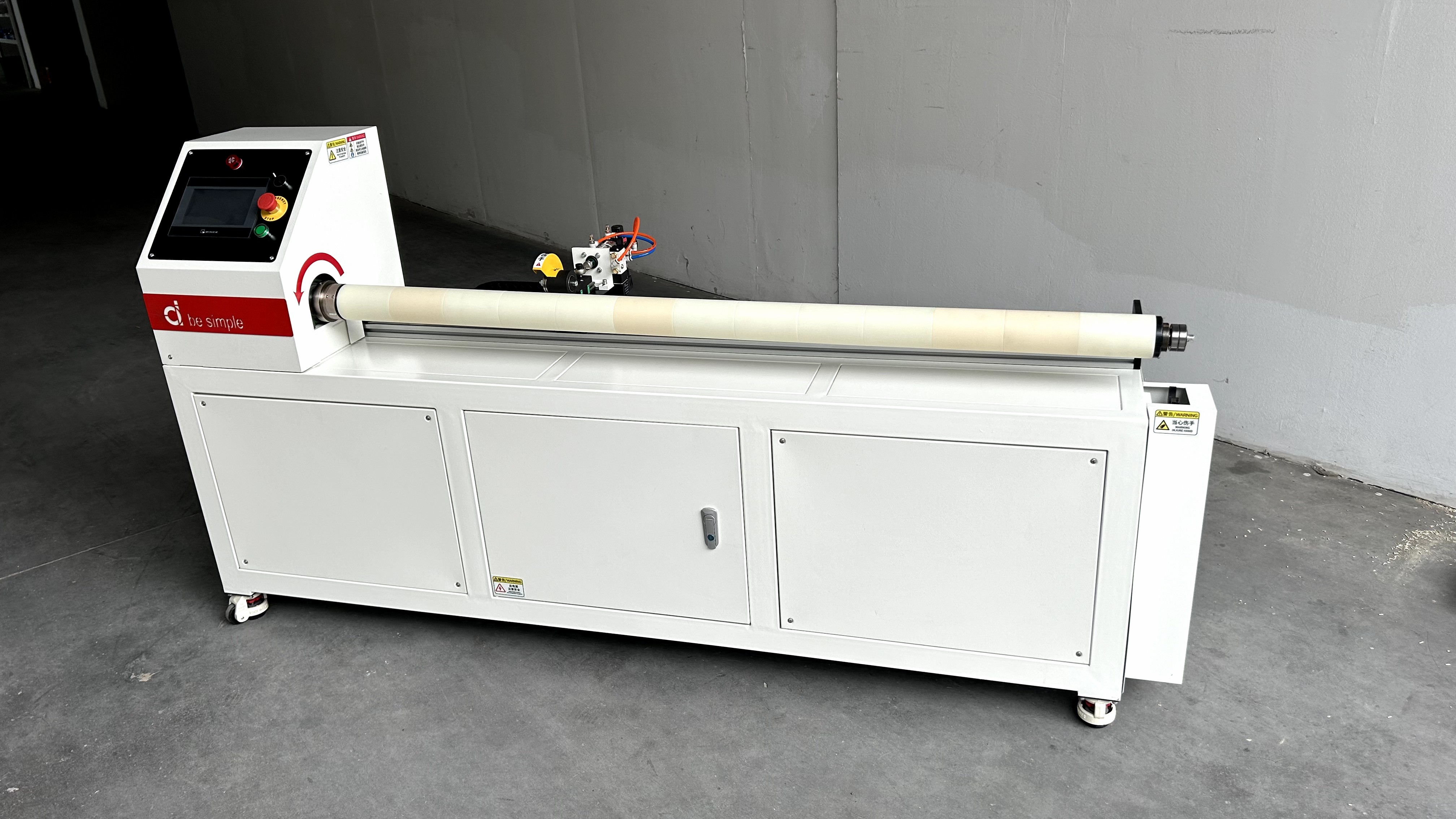

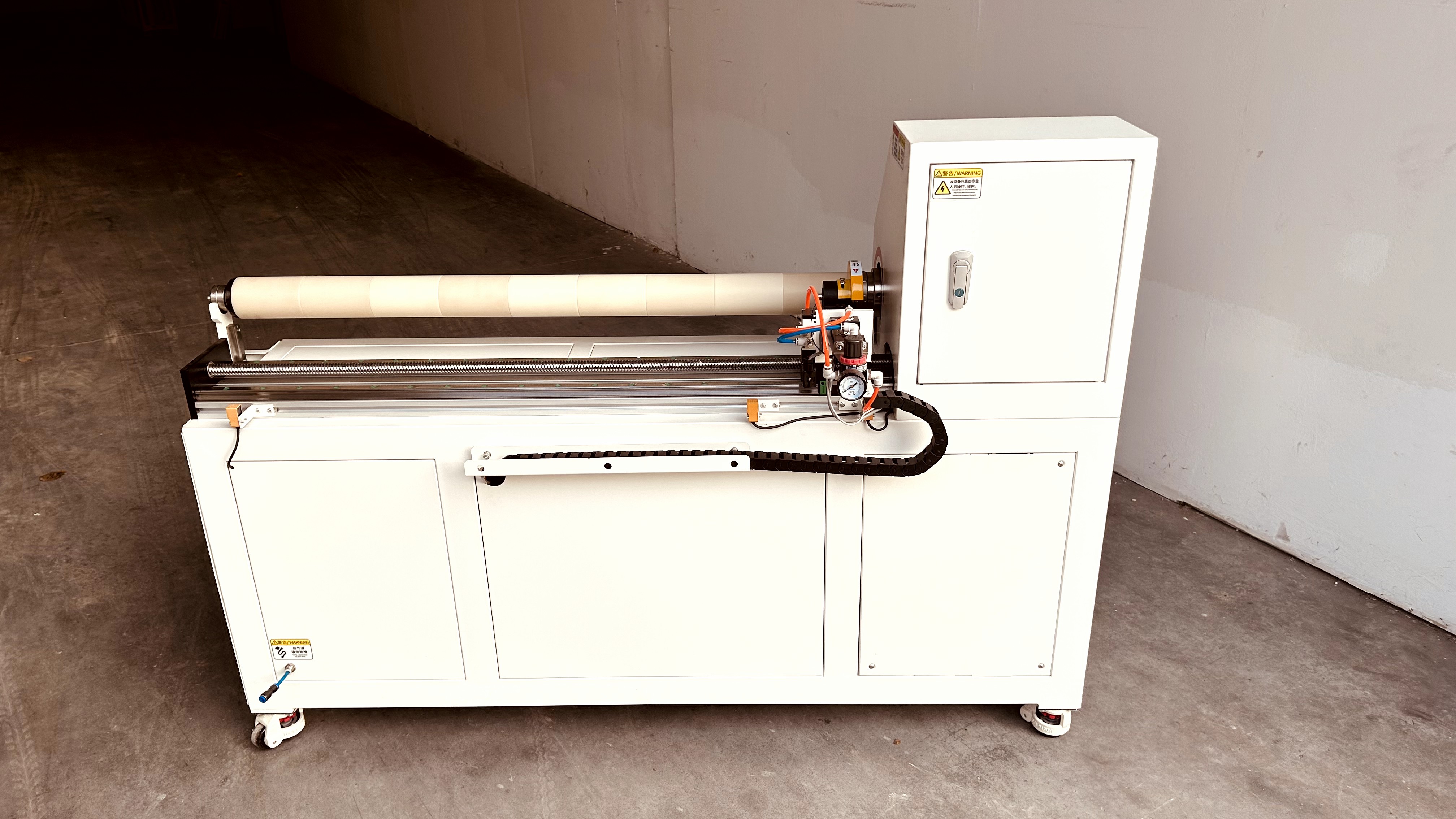

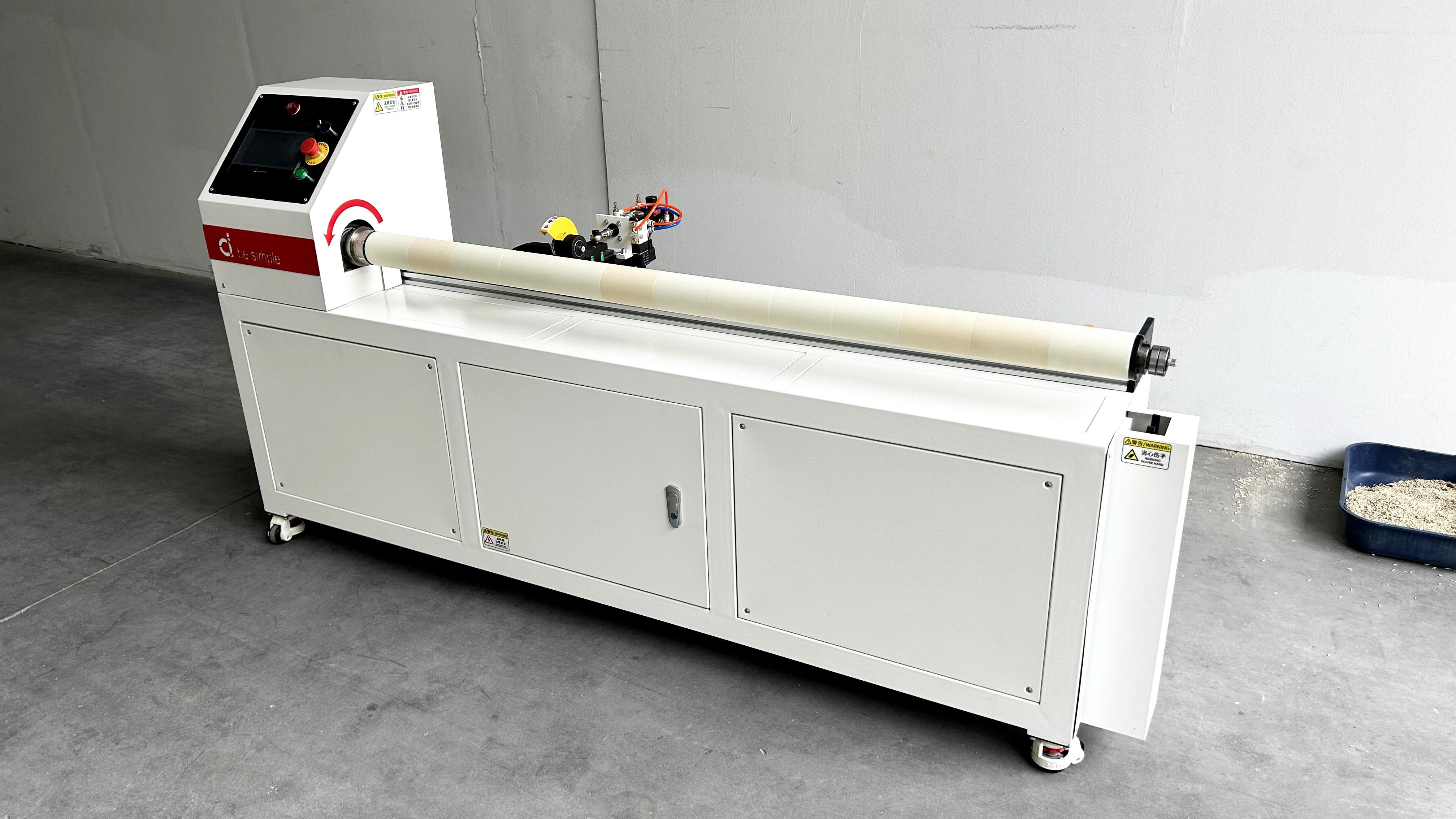

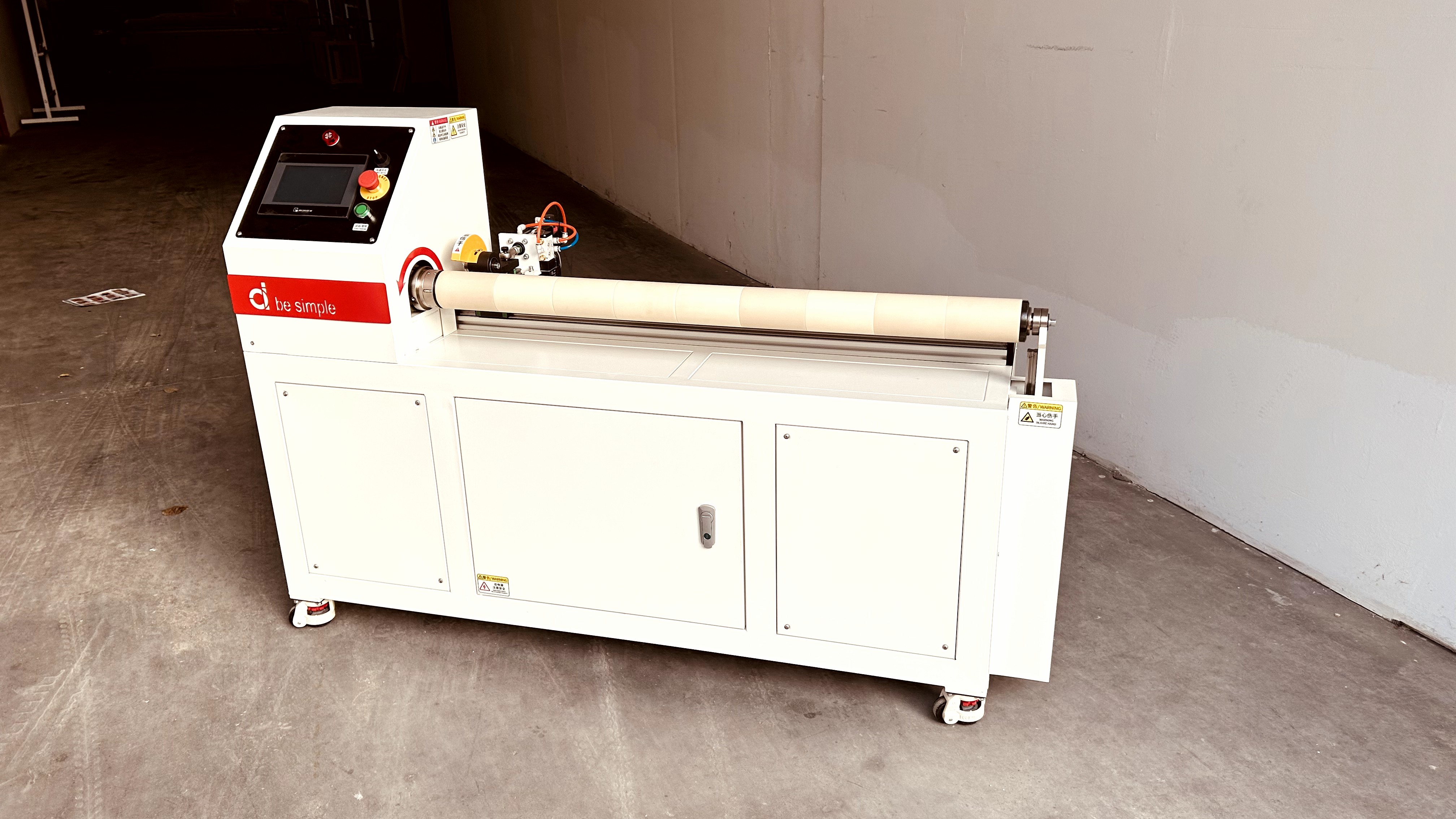

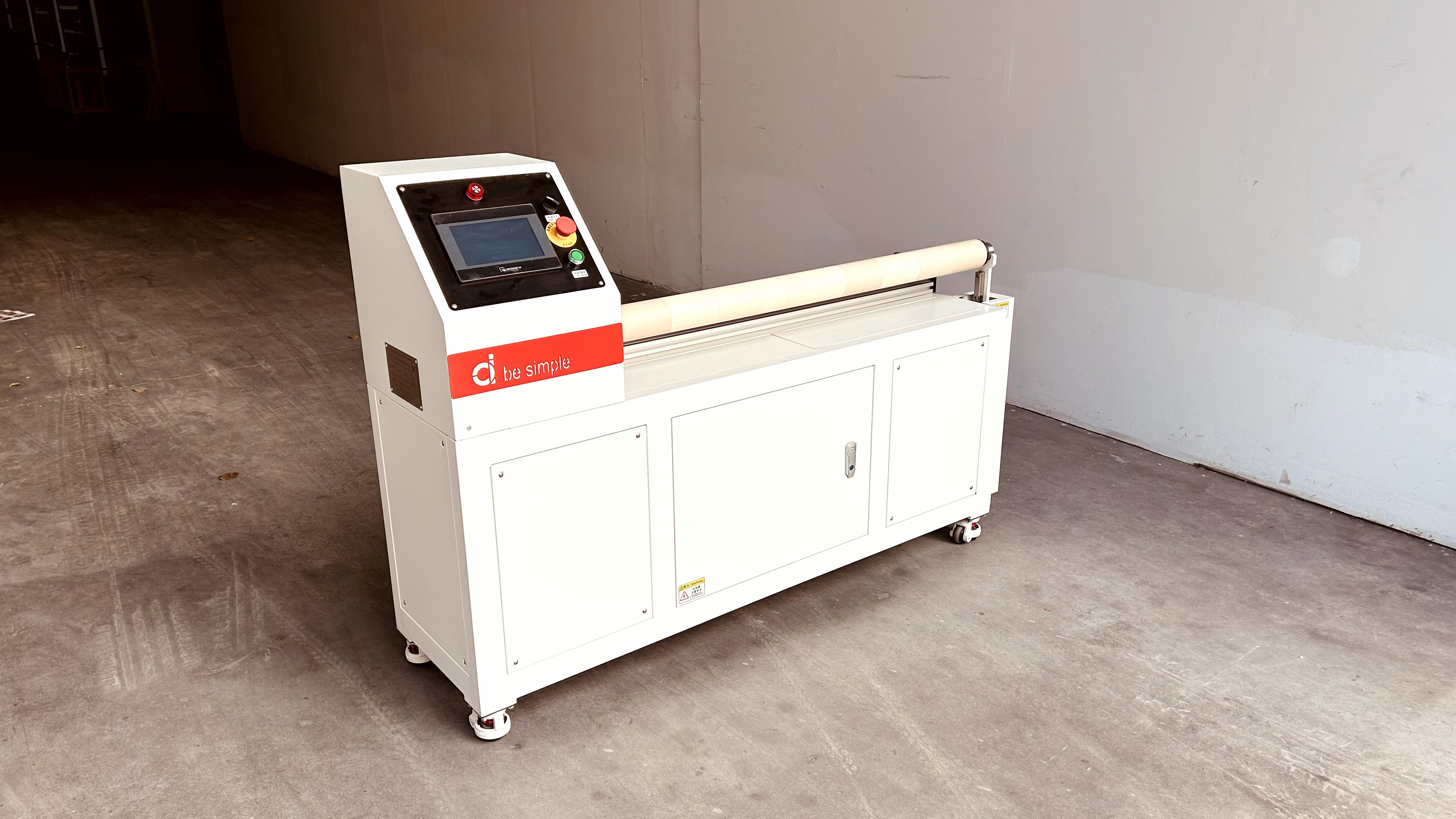

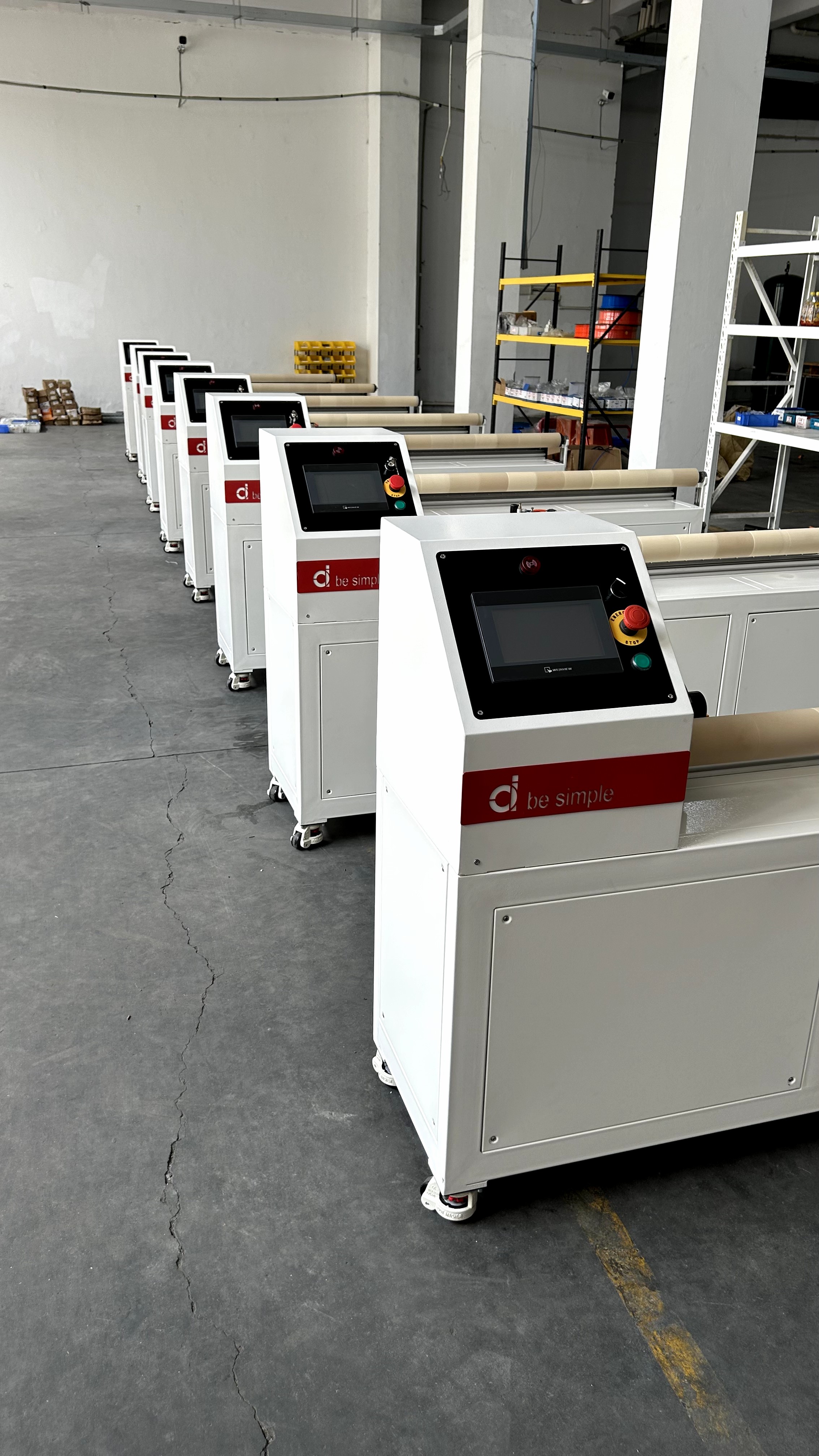

Core-cutter DQG 1600
Specification：
|
Type |
DQG |
Working Width : 1600 mm |
|
Cartoon Tube |
3inch |
6inch can be adapted on customer request |
|
Speed |
≈10 pcs/min |
|
|
Precision |
±0.3mm |
Machine precision:±0.1mm/m |
|
Main Motor |
1.1kw |
|
|
Control Motor |
0.3kw |
|
|
Power Sum |
1.8kw |
|
|
Supply |
220V/50Hz |
|
|
Air |
0.6Mpa |
|
|
Dimension |
2120×550×1120 |
|
|
Weight |
300kg |
|
|
Control type |

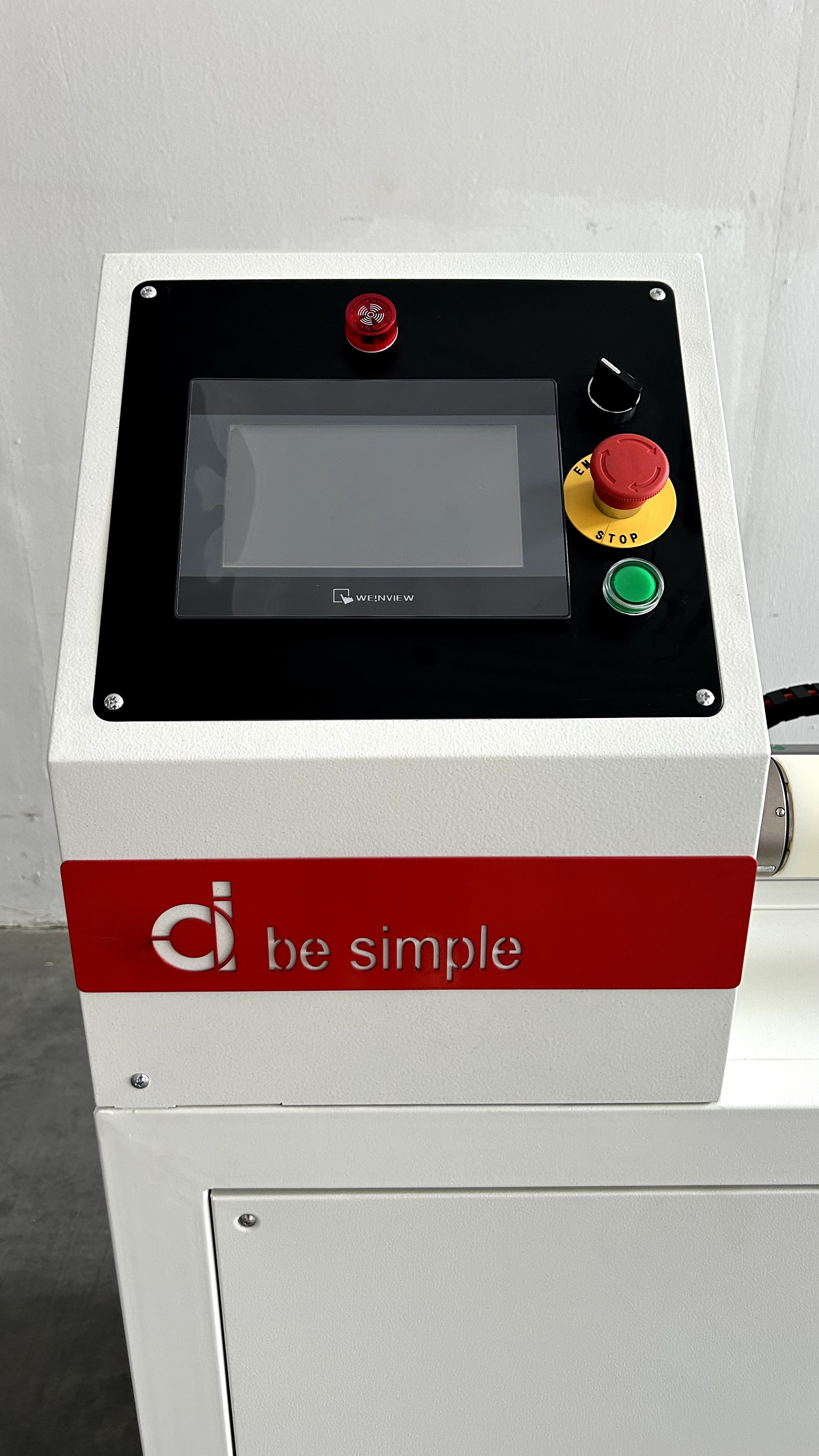

Touch screen |
|
Business：
|
Item |
Description |
QUO |
|
DQG-1600 |

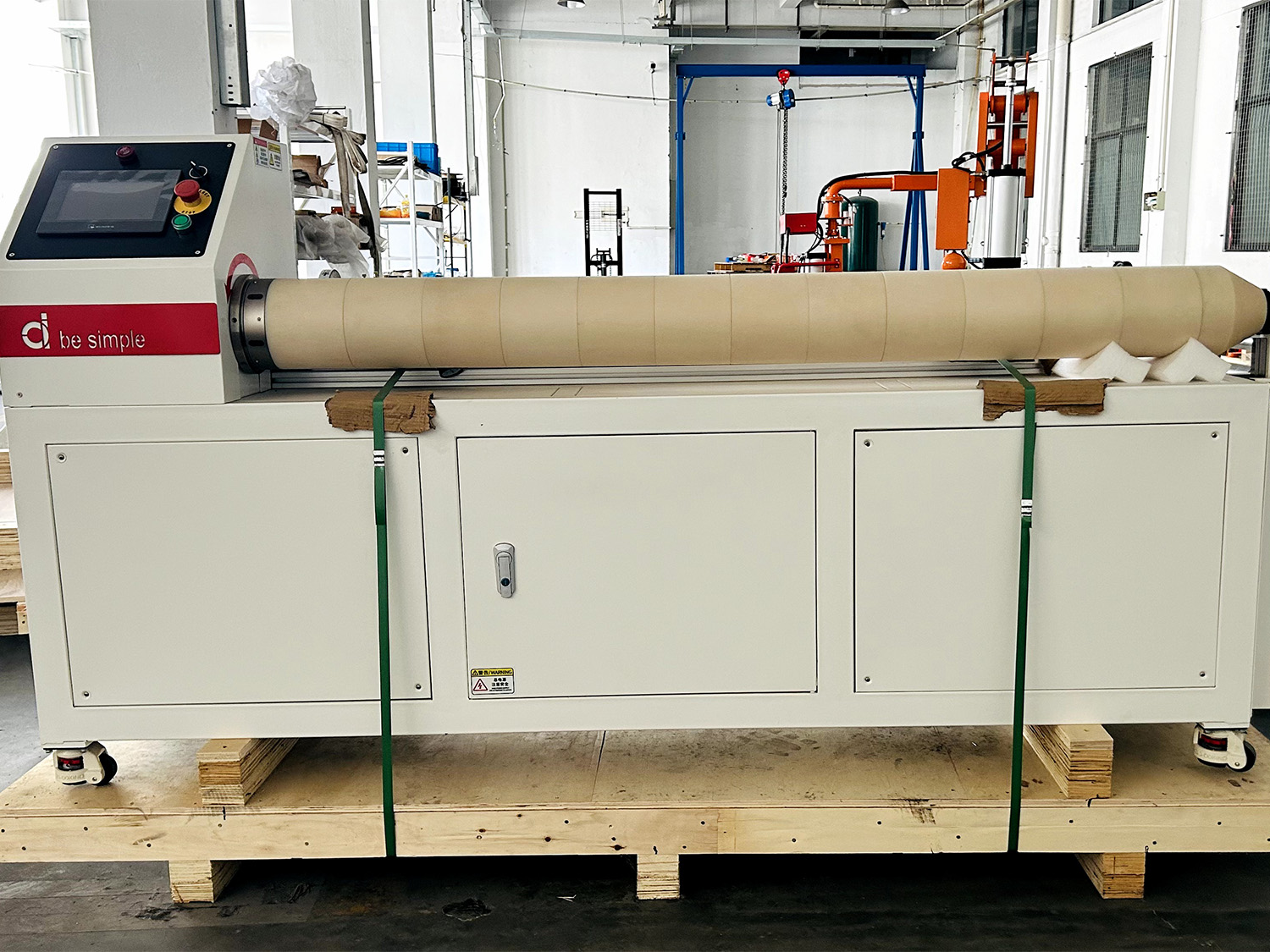

3-Inch core, packed on pallet |
|
|
6inch adaptor |
Quick change to 6inch core |
|
|
|
Price Term |
|
Delivery and payment：
|
Destination |
|
|
Contact |
|
|
Production time |
Standard Machine In stock, 20 Days for Customizing |
|
Payment |
100% T/T in advance |
Warranty：
|
1 year |
Working principle:
1. Set the length of the paper tube, the width of the required paper tube and other adjustable parameters on the touch screen;

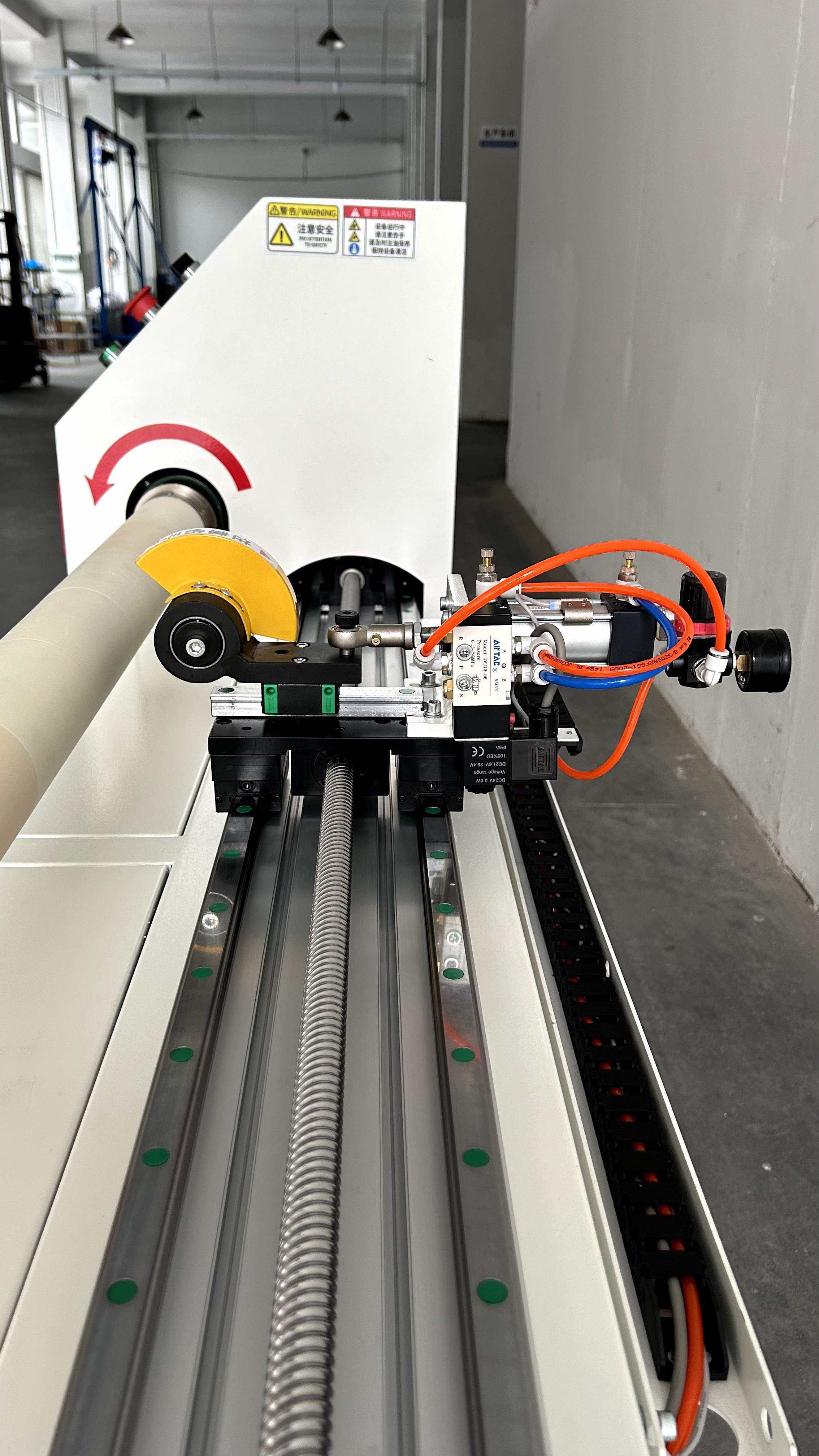

2. Insert the paper tube into the nylon shaft from the right end and open the cutting tube;
3. Push the paper tube into the collection frame.
